Roof Snow Guards

Tubular snow guards

On request, any color from the RAL color chart is available.
Available colors at stock – zinc, RAL 7024, 8017, 8019, 3005, 6005, 7016 and 9005.
Mounting on any type of roof, including seam roofing.
A wide range of tilt angle simplifies installation.

Tubular snow guards are a specially designed passive safety structure that no modern building can do without.

What are the functions of Oberig snow guards?

Keep snow on the roof, which serves as an additional thermal insulation.
Eliminate sudden descent of a large amount of snow, preventing destruction and damage to people and vehicles below.
Extend the life of the roofing material.
Prevent destruction of the rainwater system.

Thanks to a special design, Oberig snow guards pass snow masses gradually, reducing their kinetic energy to a safe value.

Download price

Certificate of conformity

Installation instructions

Video instruction

Oberig Rooftop Guardrail Systems

Rooftop guardrail Oberig

Rooftop guardrail is a vertical safety element of the roof, designed to ensure the safety of people when moving along the roof and prevent them from falling during repair, operation and maintenance of the roof.

Rooftop guardrails are installed along the edge of the roof along its entire perimeter.

From a technical point of view, rooftop guardrail is a low fence consisting of racks connected at several levels by horizontal rails with special elements for secure fastening to the roof.ы

Installation instructions for seam roof download

Installation instructions for other types of roofs download

Installation video instruction

Download price

Certificate of conformity

Crash test

DBN norms for rooftop guardrails (Ukraine).

According to DBN V.2.6-14-97 «Construction of buildings and structures. Roofing of buildings and structures»

Installation of the rooftop guardrails is mandatory on buildings:

with a roof slope of up to 12% and a height to the cornice or top of the outer wall (up stand wall) more than 10 m
with a roof slope over 12% and a height to the cornice more than 7 m

Requirements for the design of the rooftop guardrails:

rooftop guardrail height is min 0.6 m
can withstand a load of 0.3 kn/m
distance between rack supports max 1.2 m
distance between rack supports and the roof overhang min 35 cm
distance between horizontal elements max 30 cm

Features of Oberig Rooftop Guardrails

All elements of the railing system have: ✔zinc coating ✔powder coating according to RAL chart.

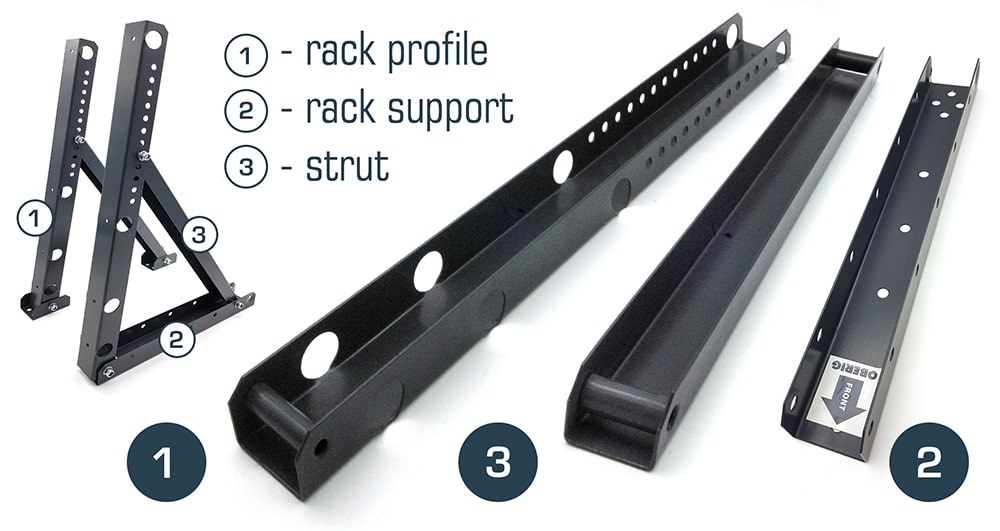

Rooftop guardrail rack

The racks are demountable; consist of three parts, which are compactly folded into one another.
The elements of the rack are U-shaped, which renders higher strength, compared with a flat bar or a corner.
Fixing bushings are used to connect the parts of the rack to each other, which increases the rigidity of the structure.

Two types of racks are available:

With solid support

Used for roof decking or a roof batten spacing of 350 mm:

metal roof tiles with a standard tile of 350 mm
seam roof (kit for fastening to the seam is required)
bitumen roof tiles
corrugated deck
sandwich panels (installation along the wave)

With divided support

It is used for various types of roofs with a roof batten spacing different from 350 mm:

metal roof tiles with a non-standard tile
stone-coated metal tiles
corrugated deck
ceramic and polymer tiles
sandwich panels (installation across the wave)

Handrails:

Tubes with a diameter of 25 mm and a wall thickness of 1.5 mm, length 3 m.
There is also a corner element.
The tubes have swage joints and are additionally tightened with a bolt and nut. The tubes are slided into the holes of the racks and fixed with self-tapping screws.
Shipped with all necessary fasteners.

Fasteners for rooftop guardrails (included):

Fasteners for a snow guard or racks bracket for corrugated decks, metal tiles, slates, ondulin, soft bitumen tiles and all types of flat-deck roofs.

Fasteners for a snow guard or racks bracket for a seam roof (brackets in the color of the fence).

Fasteners for assembling the supports of the guardrail.

Fasteners for assembling tubes, handrails and rotary elements (self-tapping screws in the color of the fence).

Set of rubber sealing gaskets for shingles with a tile above 20 mm. Sold separately.

Fasteners for sandwich panels.

Oberig rooftop guardrail systems prices

Download price list

Name	Coating	Color	Price, UAH
Oberig tubular universal snow guard (mounting on a flat-deck roof, corrugated deck, metal tile), length 3m	Zn	zinc	435
	Zn + RAL	7016, 7024, 8017, 8019, 9005	480
	Zn + RAL	other colors (at stock 3005, 6005)	540

Oberig tubular universal snow guard (mounting on a seam roof), length 3m	Zn	zinc	480
	Zn + RAL	7016, 7024, 8017, 8019, 9005	525
	Zn + RAL	other colors (at stock 3005, 6005)	585

Oberig 600 Rooftop Guardrail (mounting on a flat-deck roof, corrugated deck, metal tile), length 3m	Zn	zinc	from 645
	Zn + RAL	color coating	from 740

Oberig 600 Rooftop Guardrail (mounting on a seam roof), length 3m	Zn	zinc	from 685
	Zn + RAL	color coating	from 780

Oberig 600 Rooftop Guardrail with snow guards (mounting on a flat-deck roof, corrugated deck, metal tile), length 3m	Zn	zinc	from 935
	Zn + RAL	color coating	from 1065

Oberig 600 Rooftop Guardrail with snow guards (mounting on a seam roof), length 3m	Zn	zinc	from 970
	Zn + RAL	color coating	from 1100

Snow guard bracket (mounting on a flat-deck roof, corrugated deck, metal tile)	Zn	zinc	145
	Zn + RAL	7016, 7024, 8017, 8019, 9005	160
	Zn + RAL	other colors (at stock 3005, 6005)	180

Snow guard bracket (mounting on a seam roof)	Zn	zinc	190
	Zn + RAL	7016, 7024, 8017, 8019, 9005	205
	Zn + RAL	other colors (at stock 3005, 6005)	225

Tube for Oberig universal snow guard, length 3m	Zn	zinc	145
	Zn + RAL	7016, 7024, 8017, 8019, 9005	160
	Zn + RAL	other colors (at stock 3005, 6005)	180

Oberig rooftop guardrail rack with solid or divided support	Zn	zinc	425
Oberig rooftop guardrail rack with solid or divided support	Zn + RAL	color coating	505

Oberig rooftop guardrail rack with solid or divided support (mounting on a seam roof)	Zn	zinc	470
	Zn + RAL	color coating	550

Shipping and payment

Delivery options:

Pickup from a warehouse in Kharkiv or Brovary
Nova Poshta or Delivery courier services throughout Ukraine
Our delivery in Kharkiv and Kharkiv region

Payment options:

Privatbank card
Cash on pickup
Nova Poshta cash on delivery
Bank transfer

We deliver orders to all regions where logistics is possible and Nova Poshta operates.
Prices and terms of orders production may not always be relevant, please treat with understanding, and check by phone.
